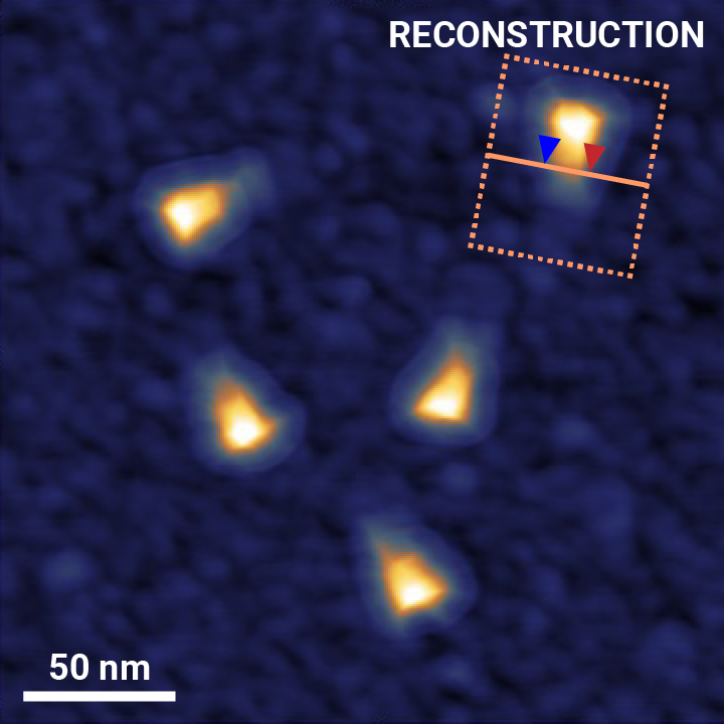

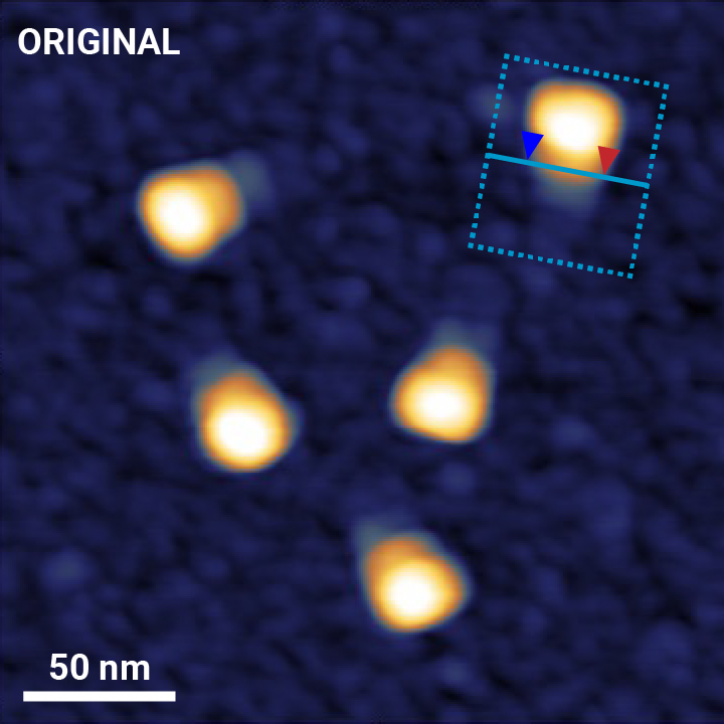

AFM images can be influenced by the form of the tip. These distortions can be corrected by using our GATTA-AFM 3D nanoruler as a calibration tool with a well-defined and known morphology for blind tip reconstruction.

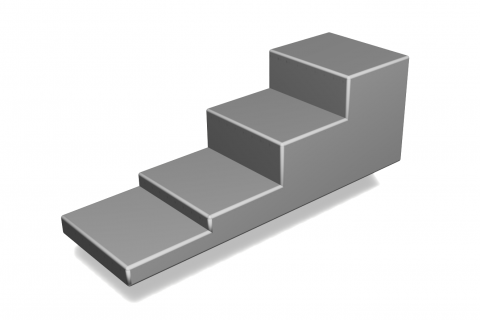

The design with sharply defined steps of different heights and a height profile well matched for use with a broad range of macromolecular complexes (up to 20 nm).
It combines several characteristics that make it well-suited for blind tip reconstruction:

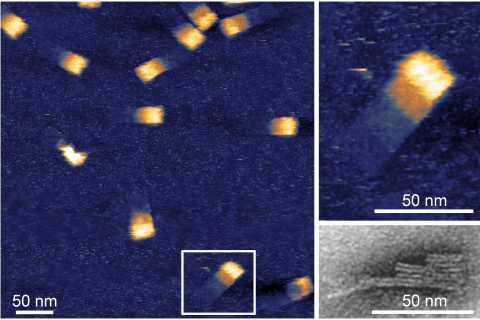

The samples are shipped in solution. The amount of material is sufficient for at least 10 AFM surfaces, densely packed with DNA‑origami structures.
Reference:
Kolbeck, P. J., Dass, M., Martynenko, I. V, van Dijk-Moes, R. J. A., Brouwer, K. J. H., van Blaaderen, A., Vanderlinden, W., Liedl, T., & Lipfert, J. (2023). DNA Origami Fiducial for Accurate 3D Atomic Force Microscopy Imaging. Nano Letters.
GATTA-AFM 3D | |
---|---|
Step dimension (L×W): | ~ 17 nm × 23 nm |
Absolute steps height: | ~ 2.5 nm, 5 nm, 12.5 nm, 20 nm |
Recommended for: | Tapping Mode in dry or liquid |
Volume: | ≥ 120 µL |
Concentration: | ≥ 5 nM |
Price | 450,-€ |

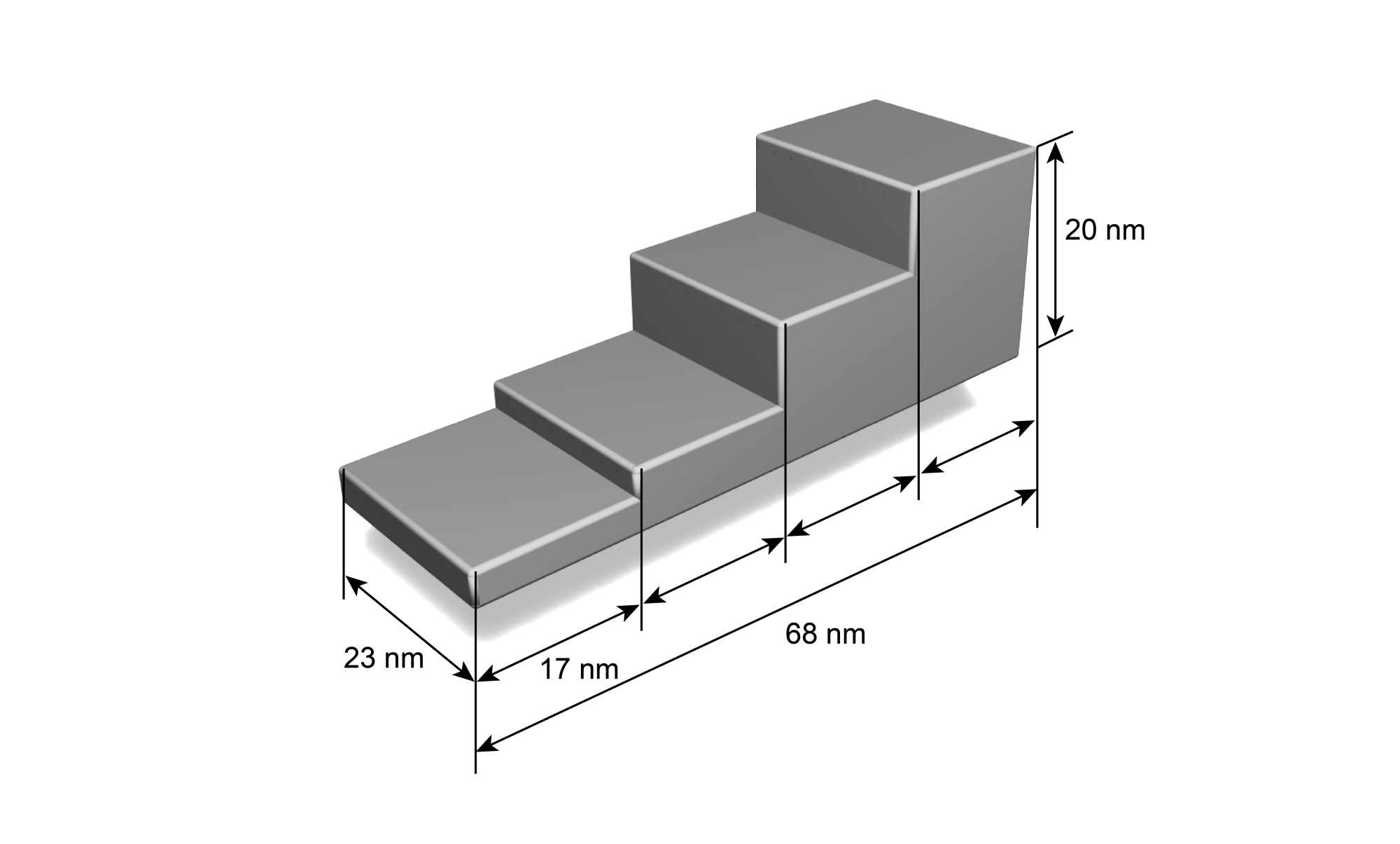

Sketch with the dimernsions of an idividual GATTA-AFM 3D nanoruler.
